720w SAMSUNG LM301B LED Board

Product Details:
Place of Origin: China
Brand Name: BAVAGREEN
Certification: CCC, ce, EMC, RoHS, etl
Model Number: BA-GL-PRO-720W
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: 465-515 USD/pcs
Packaging Details: 1 pcs /cartons (89*34*28cm, 18kg)
Delivery Time: Samples : 3-7 days . bulk order 15-20 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1000 pcs per month

Detail Information

Spectrum: Full Spectrum, From 385nm To 730nm Footprint: 4*4ft / 5*5ft
Driver: Meanwell HLG-240h Driver Size: 630mm*900mm*31mm
Weight: 18kg Power: 720w
Lamp Luminous Efficiency(lm/w): 160 Input Voltage(V): AC85-277V
Plug: AU/ EU/ US/UK/ Italy/Br/Israel Etc Light Source: Samsung 301b 3000k+5000k Osram Red 660nm Ir 730nm And Seoul Uv 385nm
High Light:

720w SAMSUNG LM301B LED Board

,

4*4ft SAMSUNG LM301B LED Board

,

BAVA SAMSUNG 301b quantum board

Product Description

BAVAGREEN720w full spectrum samsung lm301b LED Grow Light Kit with uv and ir



Products Feature



1. Independent switches, using the different light in differnt plant stage

2. Full spectrum, from 385nm to 730nm

3. Has record on the dimmer, can adjust the suitbale dimmer

4. Thickness of heatsink is 31mm, is good at dissipating heat

5. Use the famous diodes brand --- Samsung, Osram and Seoul, and driver brand---Meanwell HLG Serires

6.BAVAGREEN LED Grow Light run 50% less power than the HPS or CMH, more harvest and higher yield



The Function of Red light, Far red light and UV light



Red light----The import photons on plants growths



Red light can speed up the rate of photosynthesis, especailly in the flowering stage.

Red light impacts flowering in two ways. First, because red light is important for photosynthesis,

is by extension, also important for flowering, grower also will add far red light when in flowering, far red is the catalyst for red light.

Second, red light affecting flower number or size in any species



Far-red---The Forgotten Photons on the plant growth



Emerson enhancement effect. Far-red photons by themselves do nothing, but synergism occurs when combined

with other wavelengths, like red light, this call Emerson enhancement effect



UV light



UVC is very high-energy photons electronmagnetic energy and can damage cells. So we we don't use UVC in grow light.

UVB and UVA(290-400nm) are present in sunlight, if add in grow light, will make the real full spectrum light,

that you can improve the concentration in particular of THC and get hih yield.There is a threshold where the damage to yield

caused  by high level UVB will exceeed ant benefits in potency, so you don't need much uv ligt in your grow light



Products Specifications



720W Samsung lm301b + Oslon 660nm 730nm + Seoul 385nm
Spectrum
Full Spectrum (385nm-730nm )
Light Source
Samsung lm301b top bin diodes + Oslon ssl + Seoul
LED quantity
lm301b 3000K: 1056 pcs. 4000K : 480 pcs Oslon SSL 660nm : 72 pcs. 730nm 24 pcs
Seoul 385nm :24 pcs

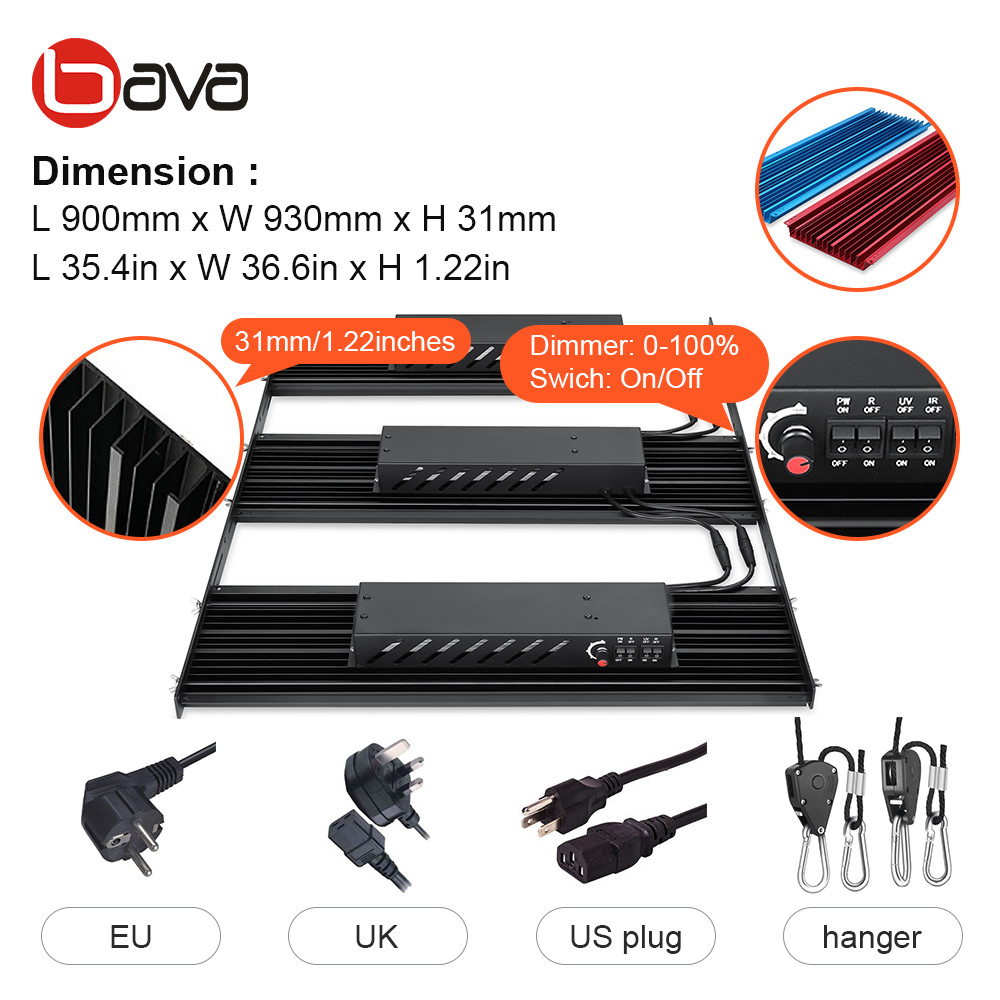

Heatsink Size
L 900 x W930x H 31mm (( L 35.4 in × W 36.6 in × H 1.22in)
Light Output PPF
1836 Umol/s
Efficiency
2.55 Umol/Watt
Power
720W
Voltage
AC100-277V ,50 / 60 Hz
Mounting Height
6" - 24" (15cm - 60cm ) Above the Canopy
Veg & Flowering Footprint
5 x5 sq ft grow area
Driver
3pcs Meanwell Driver 240h-C2100B
Dimming
0-100% dimming
Warranty
3 Years



Products Pictures

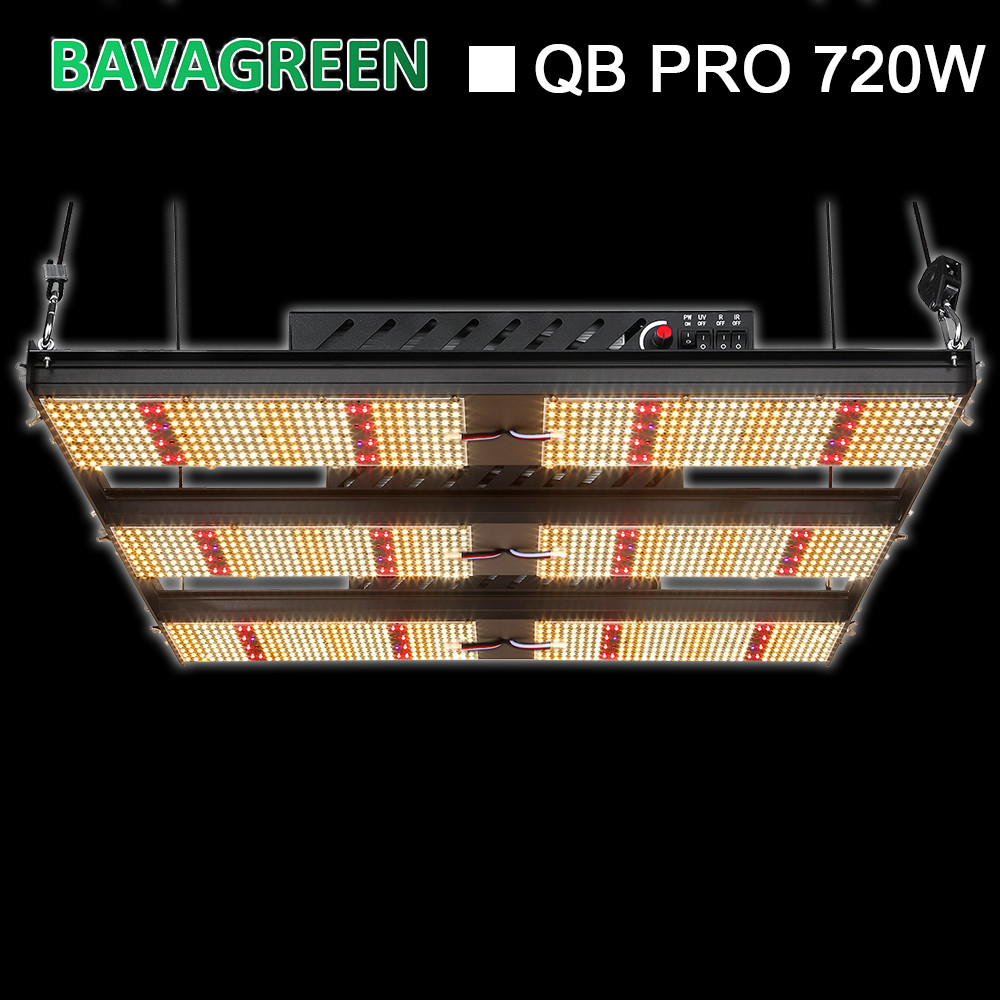

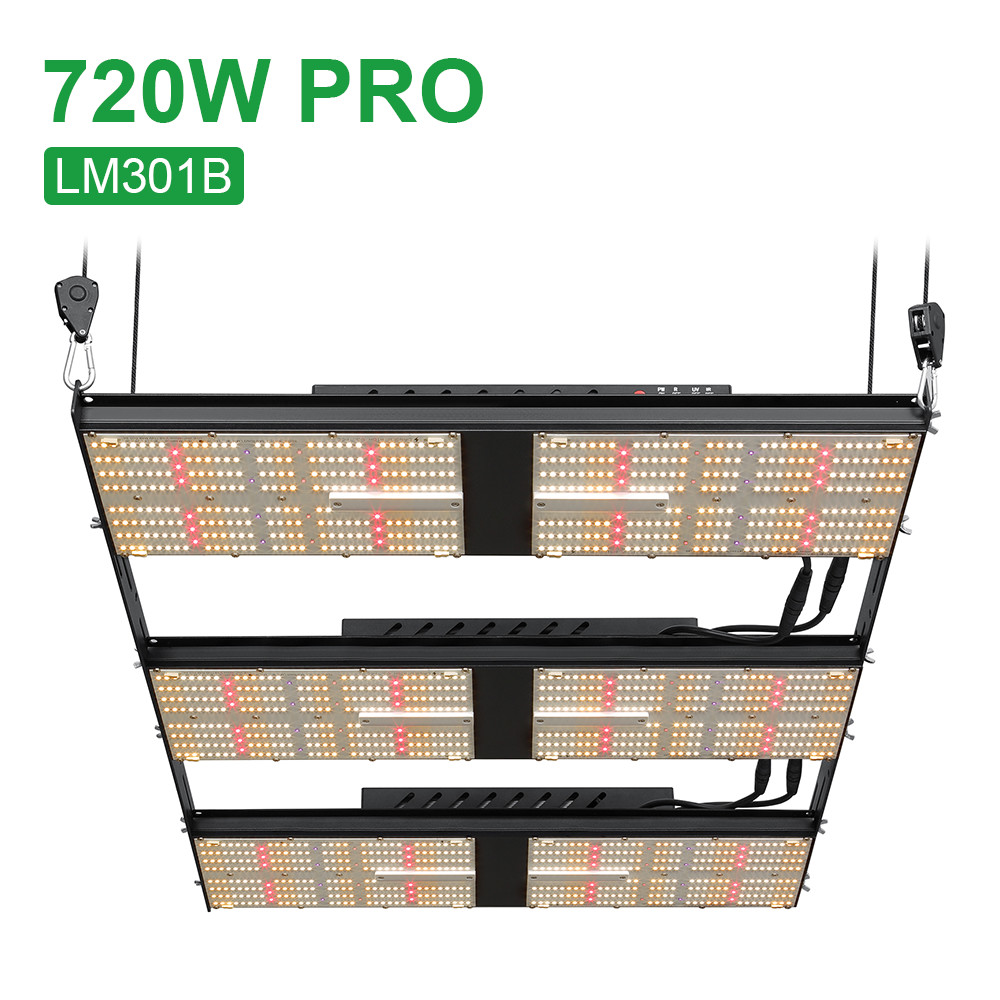

 720w SAMSUNG LM301B LED Board 0

720w SAMSUNG LM301B LED Board 1

720w SAMSUNG LM301B LED Board 2

720w SAMSUNG LM301B LED Board 3

720w SAMSUNG LM301B LED Board 4

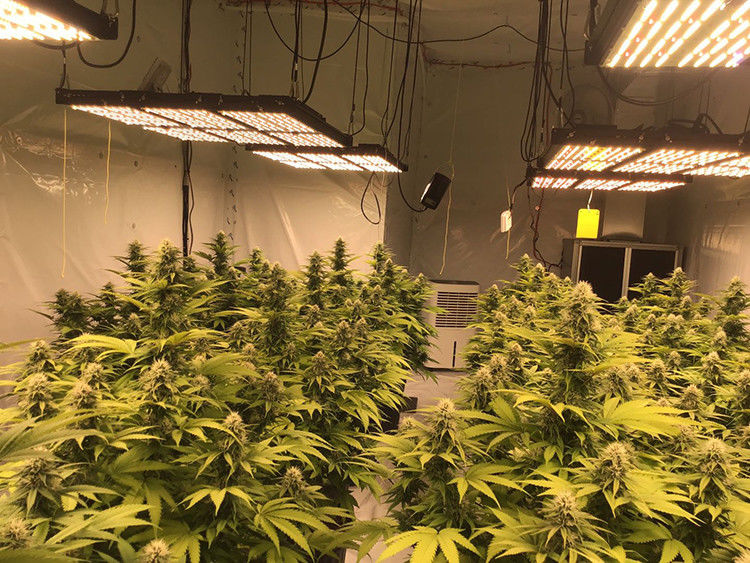

Customers Case



720w SAMSUNG LM301B LED Board 5
