Meanwell Hlg Driver Horticulture LM301H Quantum Board 480 Watt 1248umol/s

Minimum Order Quantity : 1 set Price : USD 370/set
Packaging Details : 70*23*28cm, 12kg/set, parts including 2 sling packs, 12 screws, 600cm 1 pair of double hole supports, instruction and plug wire Delivery Time : 5-8 work days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 20000 sets per month
Place of Origin: GUA Brand Name: BAVAGREEN
Certification: ce RoHS ETL SGS Model Number: BA-PL301HPRO-480W

Detail Information

Product Name: 480 Watt Plants Grow Led Light Keyword: Samsung Led Grow Light
Color Temperature(CCT): 3000k 5000k 660nm 730nm 385nm PPF: 1248umol/s
Heatsink Material: Aluminum Alloy Size: L 630 X W600 X H 31mm ( L 24.80in × W 23.62 In × H 1.22in)
Weight: 12KG / 26.4LB LED Brand: Samsung Lm301h+Osram+Seoul
LED Qty: 3000k:704pcs 5000k:320pcs 660nm:48pcs 730nm:16pcs 385nm:16pcs HPS Equivalent: 1000W
Application: Indoor Plant , Vegging , Flowering Feature: 4 Switches
High Light:

Hlg Driver LM301H Quantum Board


Horticulture LM301H Quantum Board


1248umol/s Plants Grow Led Light

Product Description

Meanwell hlg driver horticulture 301h panel uv and ir 480 watt plants grow led light

New Technology , High Efficiency and Energy Saving

Samsung lm301h white is high efficiency lighting solution for horticultural lighting.
BAVAGREEN 800w LED Grow bar Light run 50% less power than the HPS or CMH. More harvest and higher yield.



Sunlike full spectrum led indoor growing


Osram Red 660nm far red 730nm and Seoul uv 385nm,Samsung lm301h 3000 5000K white , infinite close to natural light, best for all plants all stages growing, rapid plant response from seed to flower and increase yield & crop quality‎


The Effect of Red and IR

Red light can speed up the rate of photosynthesis , especially in the flowring stage. Red light will increase the number of flower, far red is the catalyst for red light and should be applied for a short period to induce flowering and stopped once buds begin to appear

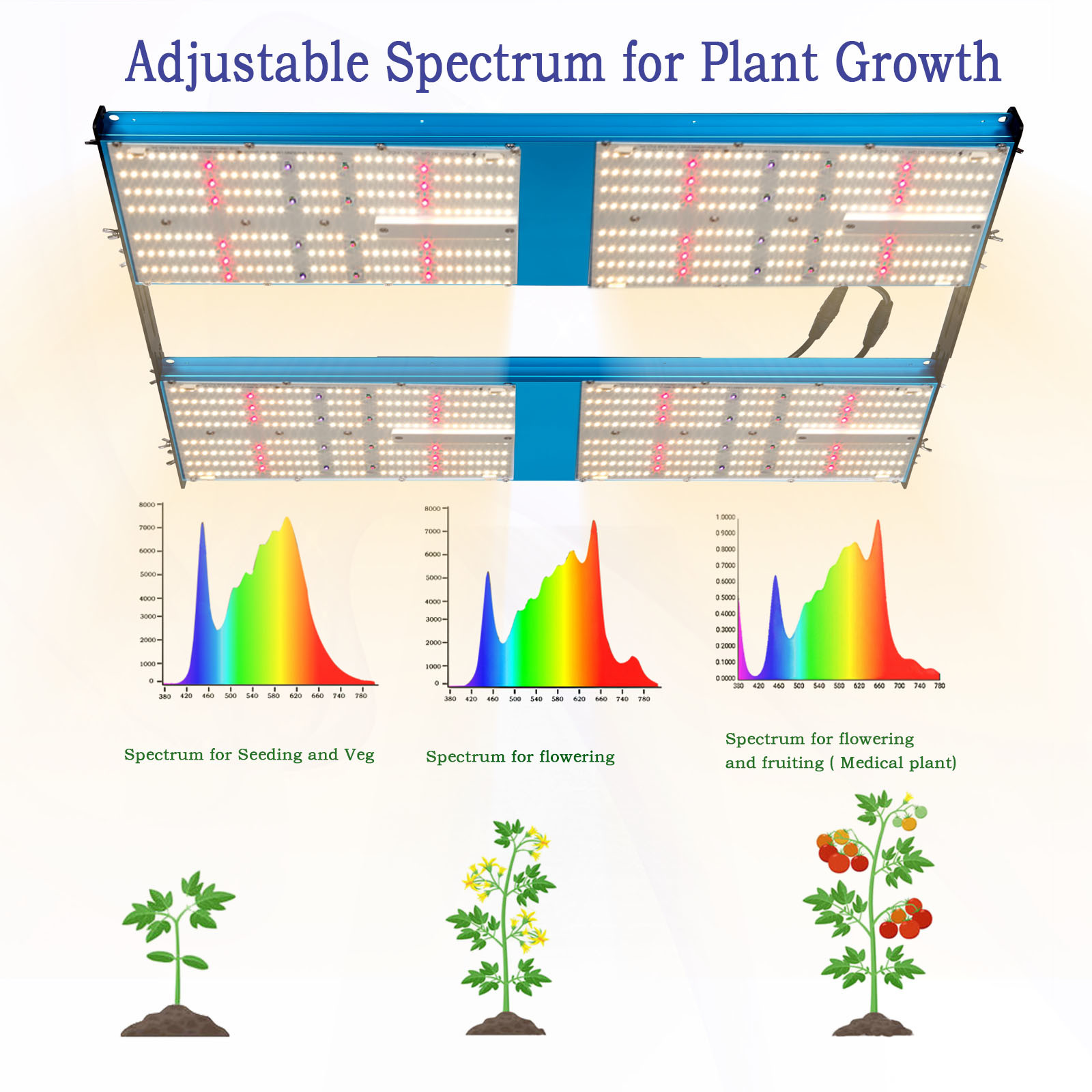

Independant switches for Red IR and UV light


Independant switches designing , growers can adjust the spectrum in different growing period. Normally , red and ir light will trun on during the flowering period , and uv light is necessary during the last two weeks of blooming .


Ultraviolet light (UV light) causes the production of resin, and increase THC and CBD, and you only need to use uv light during the final few weeks of the flowering stage of growth.

480W Samsung lm301h + Oslon 660nm 730nm + Seoul 385nm
Spectrum Full Spectrum (385nm-730nm )
Light Source Samsung lm301h top bin diodes + Oslon ssl + Seoul
Heatsink Dimension L 630 x W600 x H 31mm ( L 24.80in × W 23.62 in × H 1.22in)
Weight 12 kg / 26.4 LB
Light Output PPF 1248 Umol/s
Efficiency 2.6umol/watt
Voltage AC100-277V ,50 / 60 Hz
Lamp Luminous Efficiency(lm/w) 180
Color Rendering Index(Ra) 90
Mounting Height 6" - 24" (15cm - 60cm ) Above the Canopy
Veg & Flowering Footprint 4 x4 sq ft grow area
Driver 2 pcs Meanwell Driver 240h-C2100B
Dimming 0-100% dimming
Warranty 3 Years

Meanwell Hlg Driver Horticulture LM301H Quantum Board 480 Watt 1248umol/s 0


Our Capacity


Bava Technology Co., Ltd is a professional manufacturer of led grow lights in China for 5 years' history

We are a premium supplier on Alibaba, supervised and verified by SGS group twice a year(SGS group is an authority organization, every supplier should be strictly inspected by this organization. The purpose is to protect consumers' rights and benefits)

We‘re a very mature supplier, and we know enough about the plant growth lamp industry.

So we hope our professional expertise and good experiences of this industry are helpful for you in our future cooperation
